air filter filter regulator pneumatic filter air treatment

Price:	1.55~2.0 USD
Payment Terms:	T/T,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: pressure Filter air filter ...

Production Capacity: 20000pcs

Delivery Date: 10days

port size: 1/4"

Filter Precision: 25um

Operating Temperature Range: 5-60℃

Protective Cover: avaliable

Means of Transport: Ocean,Air

Packing: foam packing

Brand Name: WTPC

Flow rate: 750

Highest Working Pressure: 1.0MPA

Container Material: Polycarbonate

drain: auto drain/ hand drain

Ordering Code/Mode
Specifications
Accessories
Drain Funcition
Auto Drain Model
Rated Flow(l/min)
Caliber Size(G)
Bowl Capacity:750 mg

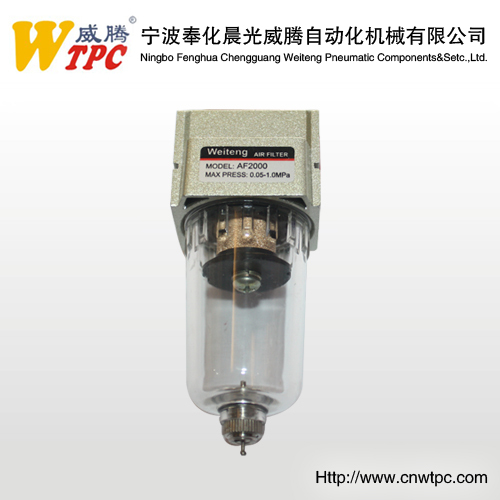

product name :air filter smc filter air conditional filter pneumatic filter smc af2000-02

Ordering Code/Mode	Specifications				Accessories	Drain Funcition	Auto Drain Model
	*Rated Flow(l/min)	**Caliber Size(G)	Bowl Capacity	Weight	Bracket
AF1000-M5	110	M×0.8	4	0.07	-	Manual Drain	-
AF2000-01	750	1/8	15	0.19	B240		-
							-
AF2000-02		1/4
AF3000-02	1500	1/4	20	0.29	B340	Air Shutoff Drain	AF3000-02D
		3/8					AF3000-03D
AF3000-03							AF4000-03D
AF4000-03	4000	3/8	45	0.55	B440		AF4000-04D
AF4000-04							AF4000-06D
							AF5000-06D
		1/2					AF5000-10D
AF4000-06	6000	3/4	45	0.58	B540	Manyal Drain
AF5000-06
AF5000-10	7000	3/4	130	1.08	B640
		1

NO	Denomination	Material
1	Body	Aluminum Die Casting
2	Filter element	Bronze sintered B
3	Battle	ABS
4	O-ring	Rubber
5	BOWL ASSEMBLY	Polycarbonate (Cold Rolled S)
6	Deflector	ABS
7	O-ring	Rubber
8	Packing	Rubber
9	Housing	Aluminum Die Casting

Ordering Code/Mode	Caliber Size	A	B	C	D	E	F	G	H	J	K	L	M	P
AF1000	M5X0.8	25	66	7	25	-	-	-	-	-	-	-	-	26.5
AF2000	1/8-1/4	40	97.5	11	40	17	30	27	22	5.5	8.4	40	2.3	40
AF3000	1/4-3/8	53	132.5	14	53	16	41	40	23	6.5	8	53	2.3	56
AF4000	3/8-1/2	70	168.5	18	70	17	50	54	26	8.5	10.5	70	2.3	73
AF4000-06	3/4	75	172.5	20	70	14	50	54	25	8.5	10.5	70	2.3	73
AF5000	3/4-1	90	247.5	24	90	23	66.5	66	35	11	13	90	3.2	90

free to adjust the pressure range ,reduce the impurity of air .oil and water seperator .

best solution for automation . strict quality and cost control system !

parameter diagram:

feature :1.simple assemble,instructure simple ,use to all kinds of automatic equipment .
               2.sugest oil : VG32
               3.pay attention to the temperation range and pressure range .
advantage: 1.new oil cap to ensure the oil will not come out .
                      2.new adjust pressure cap   ( when pressure high will not come out)
                      3. bigger flow rate and less noise .
production ability : 1. one month 10000pcs
                                     2. 150 workers
                                    3 .advanced machine ,professional technician team
                                    4.     4.delivery date :normally 15-20days .
pneumatic componet ,our advantage products .compared with other high quality , protective guard can specilized .
